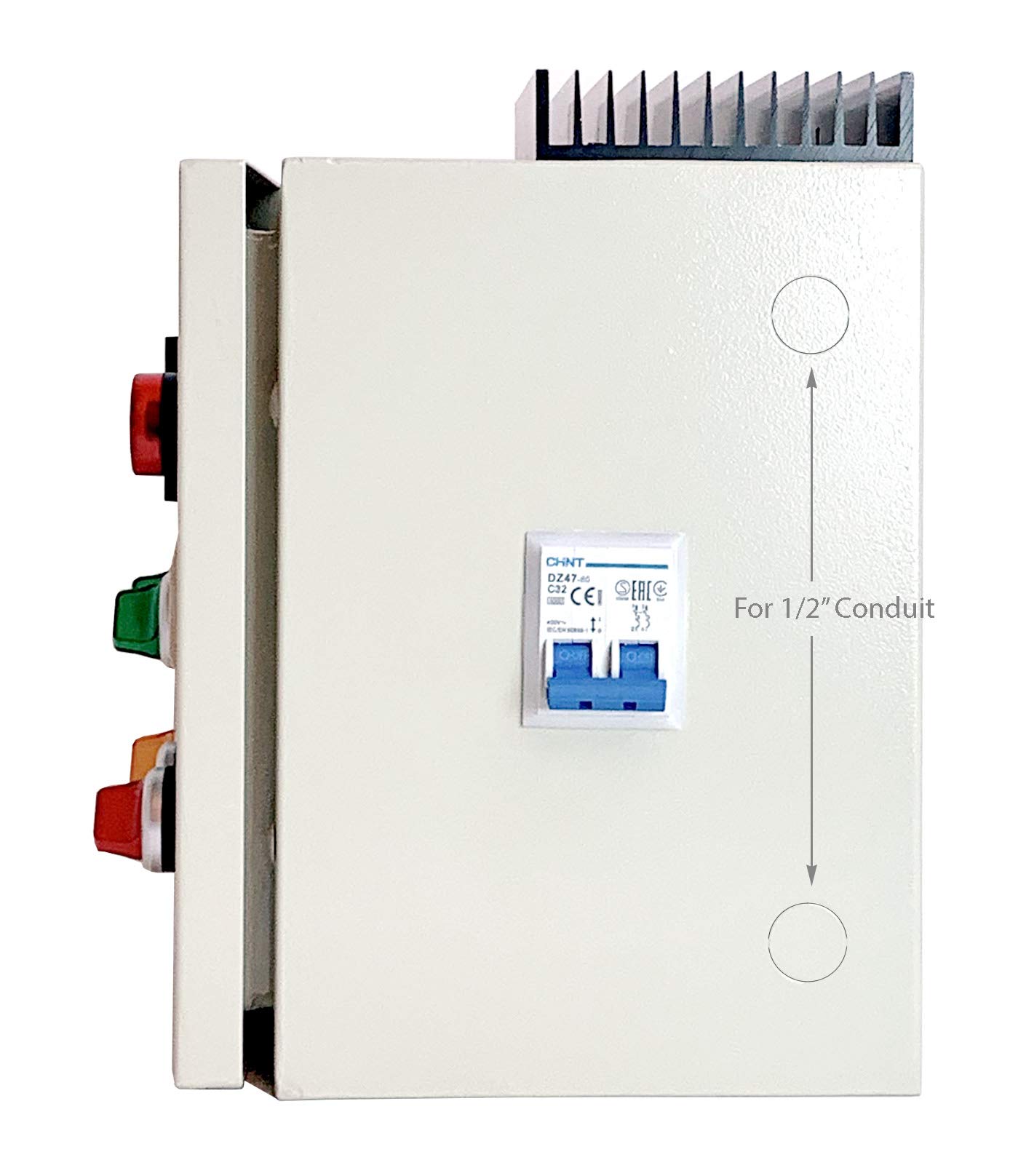

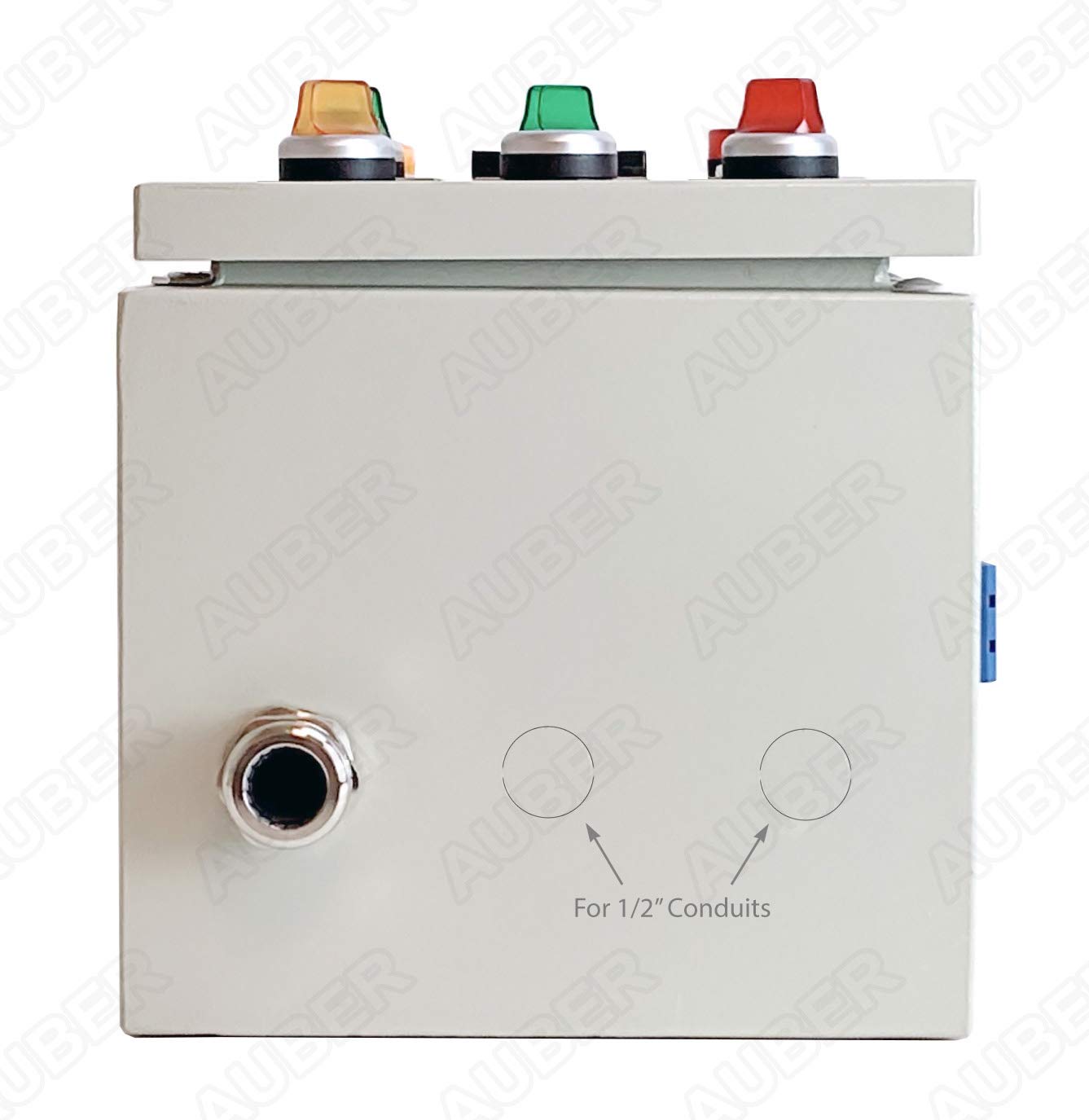

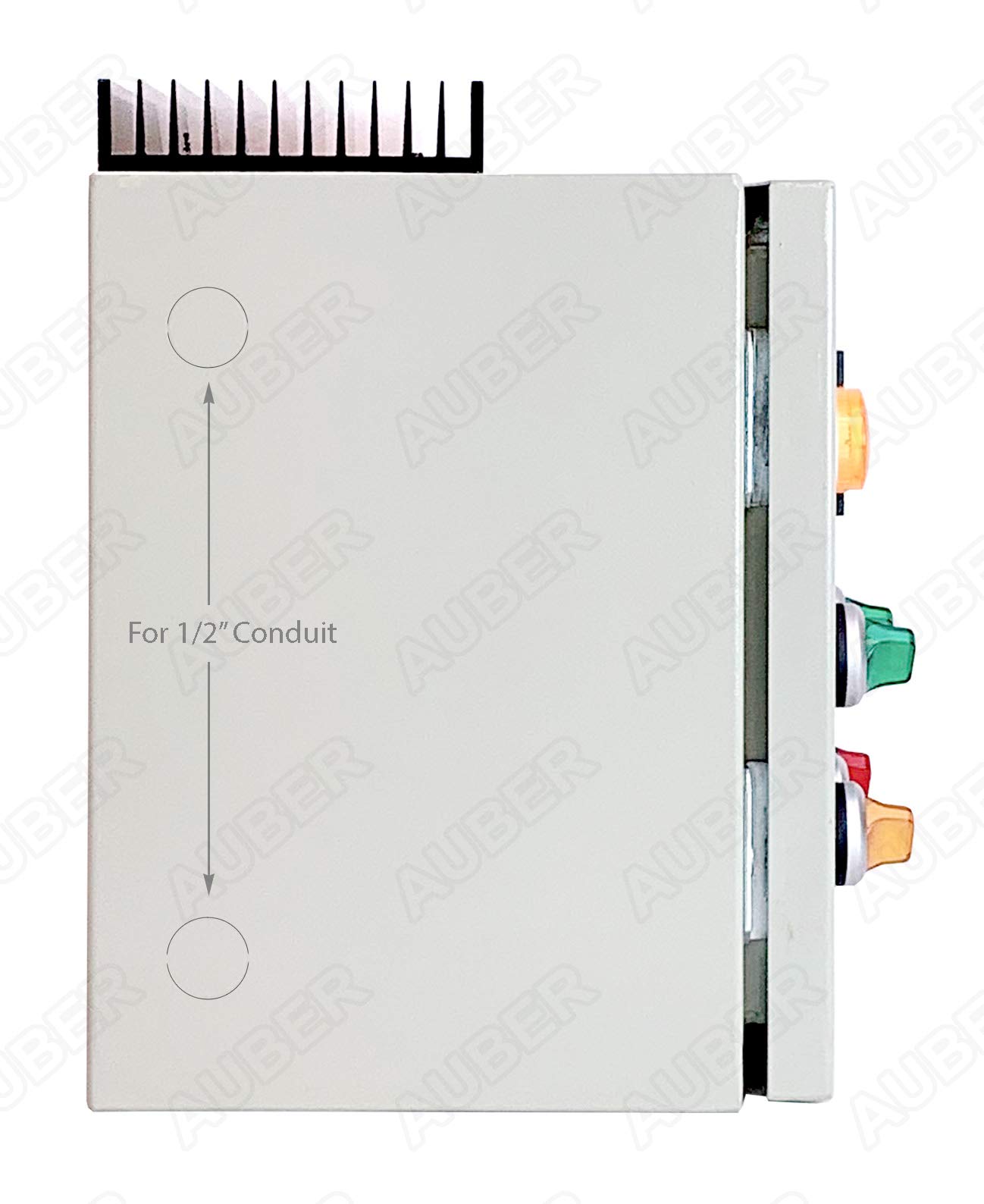

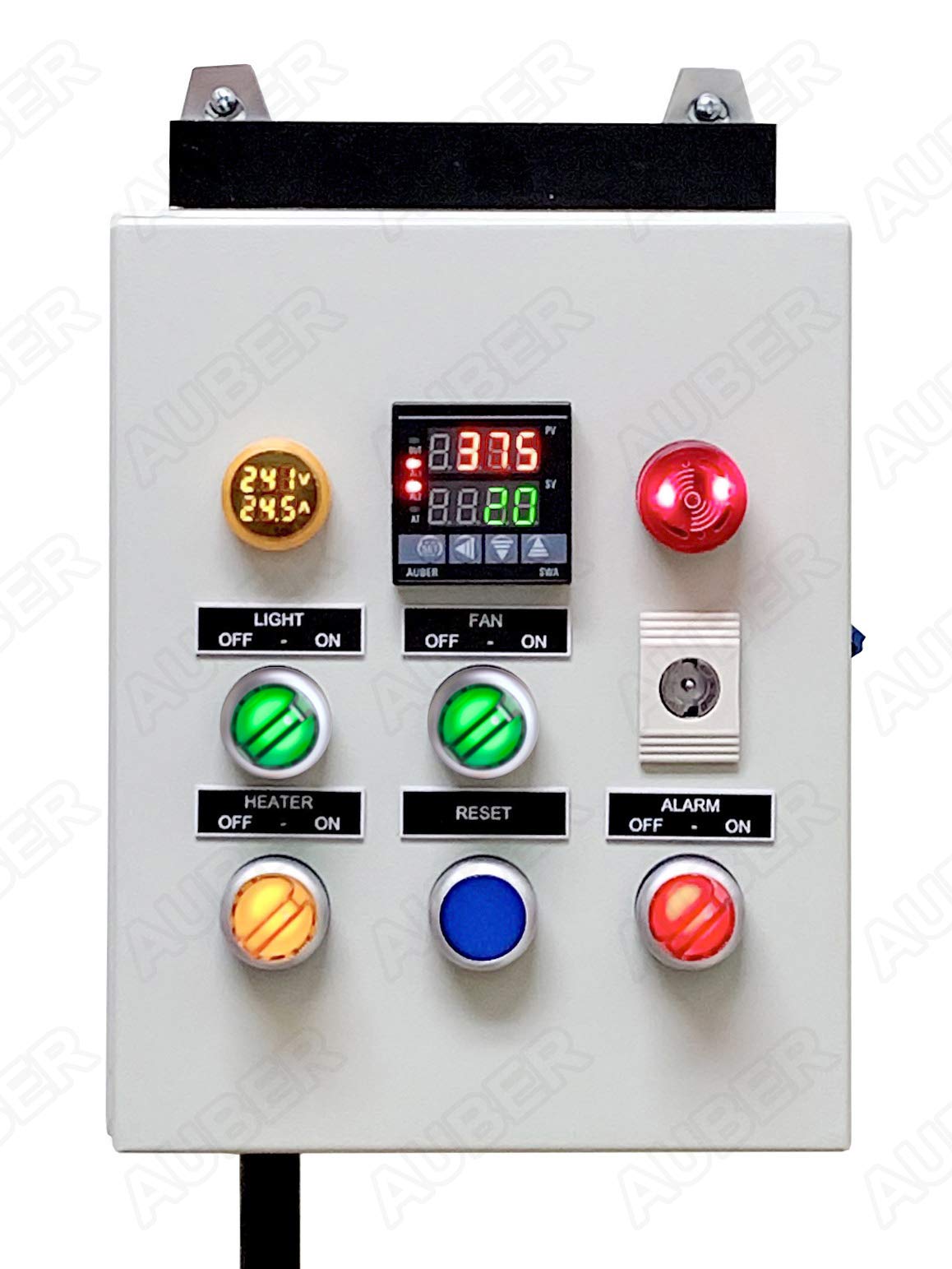

PCO204 Control Panel for Powder Coating Oven Featured with Light & Fan Control (240V 30A 7200W) 03/2023 update: this product is updated to PCO204. This is a 30A Control Panel for powder coating oven w/ light and fan control feature. The PID controller has built-in timer function, so that it can hold set temperature at a certain amount of time and then shut off power; press the blue push buttom momentarily, it will reset the timer and start aother curing batch. During the heating process, one can use a manual switch to turn ON or OFF the heater when needed. The alarm buzzer can be used as either temp alarm or finishing alarm; when it goes off, it can also be easliy muted by using the alarm ON/OFF selector switch. Features: Powder coated wall-mount enclosure with knockouts.Dual-line display PID controller with built-in timer function.Illuminated 22mm switches for intuitive of operation.Flashing buzzer and illuminated alarm mute switch.Mini 2-in-1 Volt and Amp meter for showing system power.Solid State Relay for precise temperature control. Contactor for completely cut off power to the element.Oven temperature probe w/ mounting screw (both sensor and cable are rated for 900F).1/2 inch EMT connector for output connection; strain relief power cord connector for hard-wiring the power line.Side-mount breaker switch for overload protection.US seller & US support team. This control panel is designed and manufactured by Auber Instruments. Copyright Auber Instruments. Description: This control panel is built with some of the most popular components offered by Auber Instruments to the powder coating oven DIY community. With the PID controller SWA-2451, oven can be heated up to set point as soon as possible and maintain for a preset period to cure the part. When the batch is finished, the coating process can be re-started again by pressing the reset button. The PID controller can also be used as a thermometer if the operator turned heater switch to OFF position, the heater outlet will be powered off completely by the contactor. Meanwhile, system performance is enhanced by SSR (Solid State Relay). When the heater switch is turned to ON position, the PID controller will provide power to the element via SSR which will take action in only 2 seconds. Notes: The control panel is designed for North America 240V AC power line which requires four line power connections (L1, L2, Neutral and Ground), please verify your power supply before purchase.Input power cord (SOOW 10/4) is not included because each user may have different hook up requirements.Heating element is not included.For a KIT of components to DIY this panel, please check ASIN: B073WZZHXRAll items sold here cannot be matched with manufacturer's MSRP Specifications Heater Control Output 30A, 240VAC maximum. 1/2 inch EMT Connector. Light/Fan Control Output 5A, 120VAC maximum. 1/2 inch EMT Connector. Input Connection 30A, four conductors. Sensor K Type Thermocouple sensor w/ 4 inch probe. Circuit Breaker 2P 32A. Temperature Controller SWA-2451B Dimension (W x H x D) 10 x 8 x 6 inch (25 x 20 x 15 cm). Weight 11 lb (5 kg). PCO104 Assembled Panel PCO204 Assembled Panel PCO304 Assembled Panel PCO404 Assembled Panel PCO504 Assembled Panel KIT-PCO204 DIY Kit Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — 5.0 out of 5 stars 1 5.0 out of 5 stars 1 5.0 out of 5 stars 7 — 3.6 out of 5 stars 14 Price $499.99$499.99 $549.99$549.99 $699.99$699.99 $899.99$899.99 $1,199.99$1,199.99 $400.00$400.00 Max Current 30A 240V 30A 240V 50A 240V 50A 240V 75A 240V 30A 240V Recommended Oven Element (240V) 2 x 3000 Watt 2 x 3000 Watt 4 x 2500 Watt 4 x 2500 Watt 6 x 3000 Watt 2 x 3000 Watt Light & Fan Control (120V) no data ✓ no data ✓ ✓ ✓ Independent Timer Display no data no data ✓ ✓ ✓ no data Input Power Cord Needed (AWG/Conductor) 10/4 10/4 6/4 6/4 4/4 10/4 Recommended Oven Size (cu ft) 2 x 4 x 5 = 40; 3 x 3 x 6 = 54; 3 x 4 x 5 = 60 2 x 4 x 5 = 40; 3 x 3 x 6 = 54; 3 x 4 x 5 = 60 4 x 4 x 6 = 96; 4 x 4 x 7 = 112; 4 x 4 x 8 = 128 4 x 4 x 6 = 96; 4 x 4 x 7 = 112; 4 x 4 x 8 = 128 5 x 5 x 6 = 150; 5 x 5 x 7 = 175 2 x 4 x 5 = 40; 3 x 3 x 6 = 54; 3 x 4 x 5 = 60
