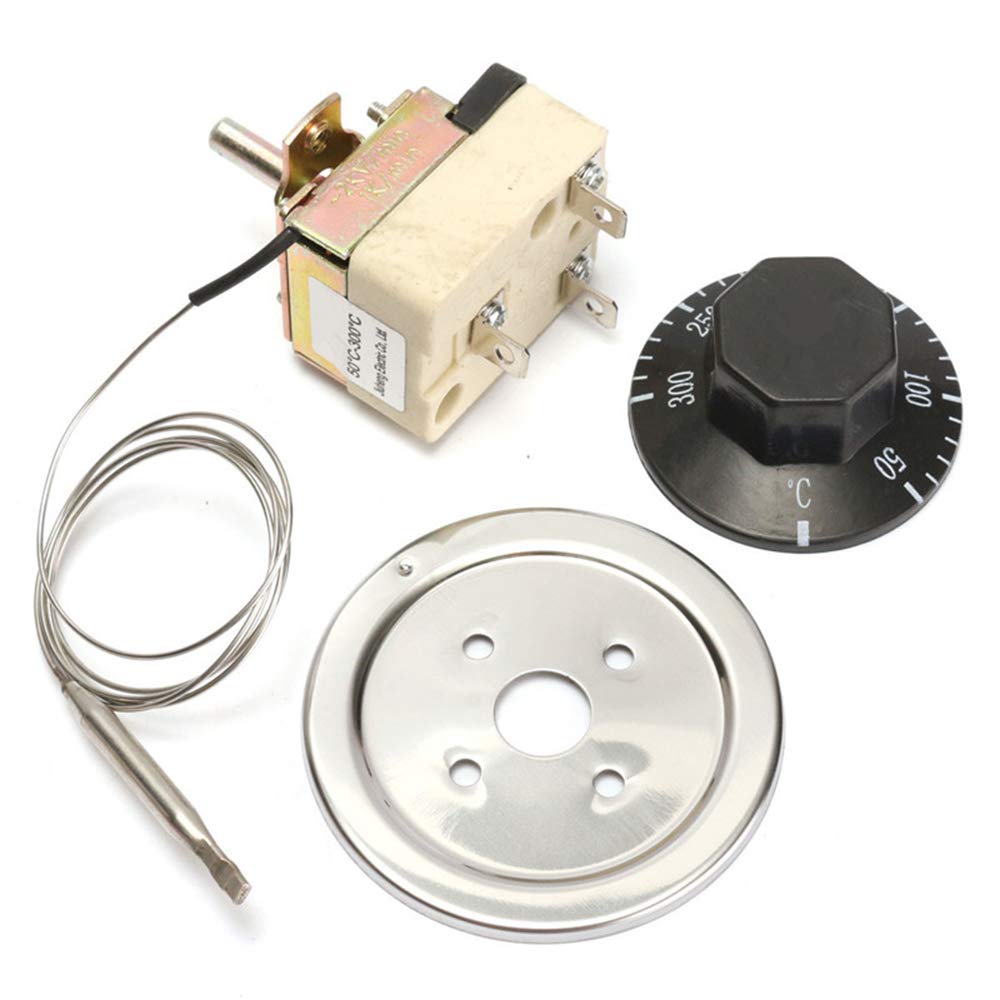

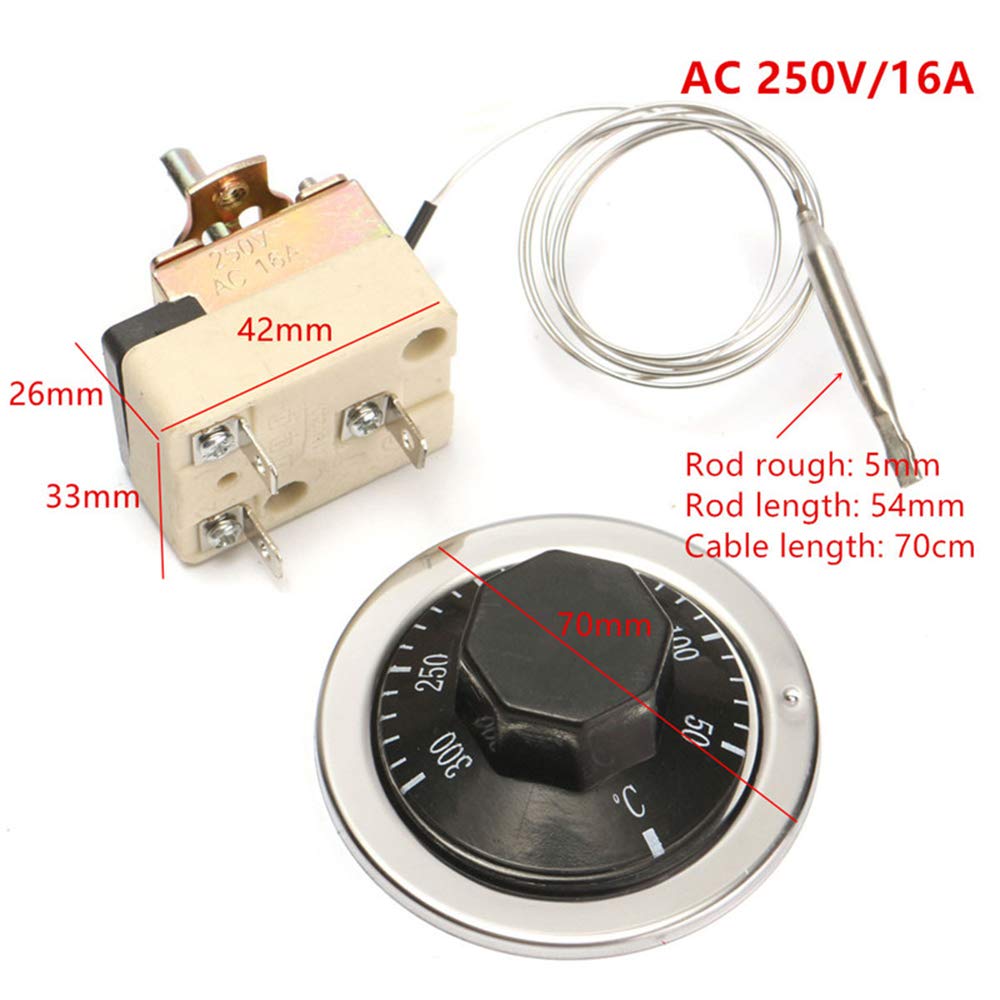

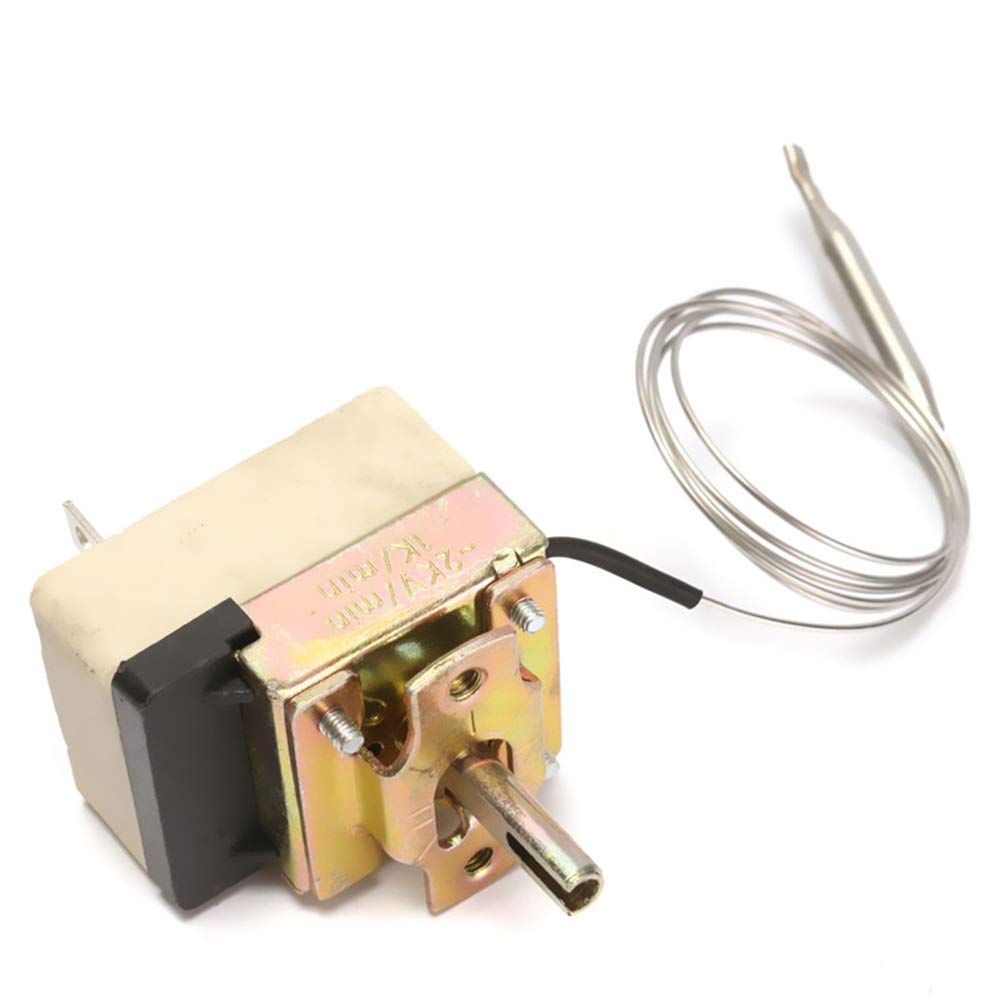

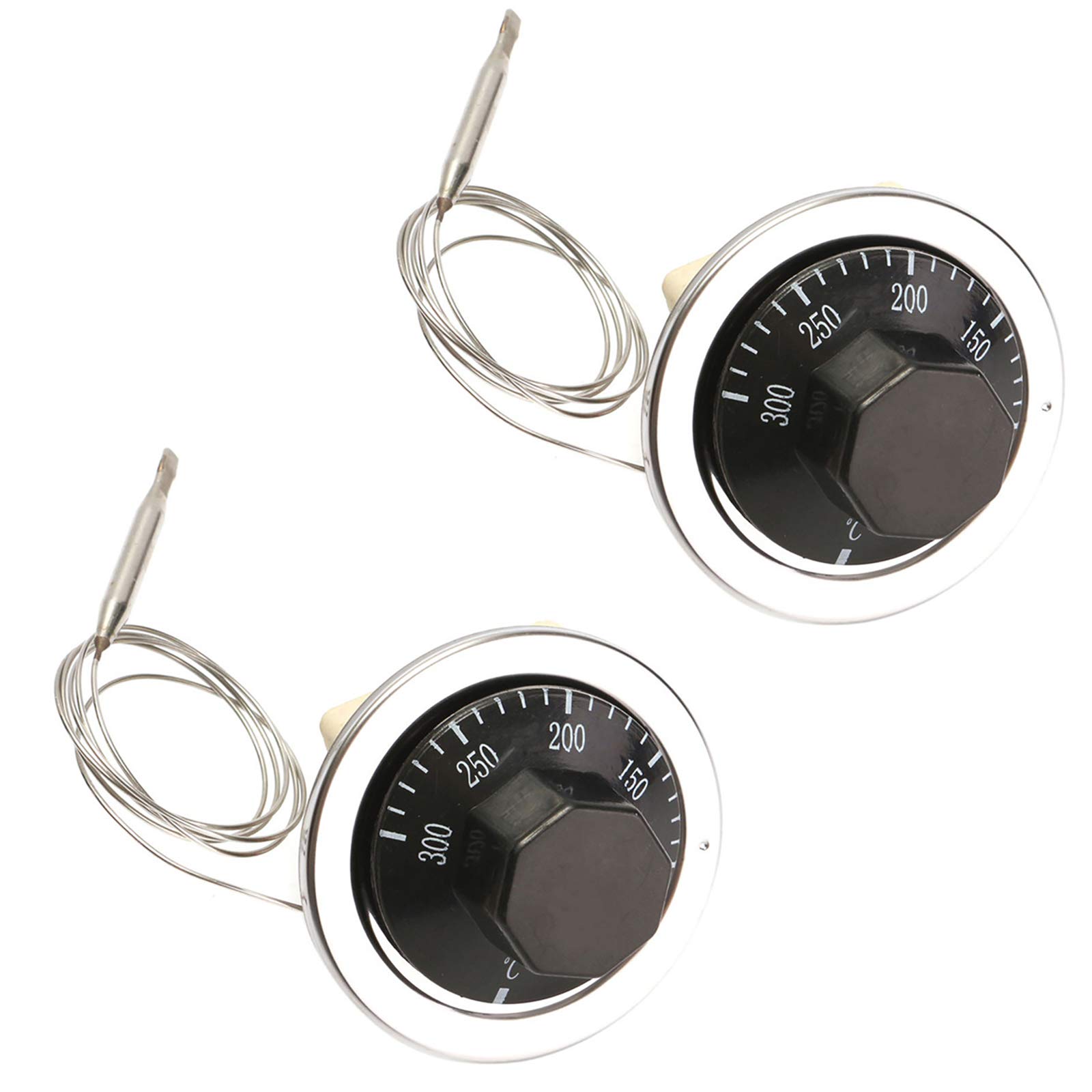

Description:This thermostat is widely used in various types of heating and cooling equipment. First, determine whether it is normally closed or normally open, and then select the appropriate temperature specification and temperature probe size to replace.Three feet is a normally closed and a normally open function.Specifications:Material: metal, plastics, ceramics,Rod rough: 5mmRod length: 54mmCable length: 70cmVoltage: AC 250VCurrent: 16ATemperature: 50 ° C-300 ° CProduct Life:> 100,000 timesElectric strength: AC2000V / 1minNormal insulation resistance: ≥100MΩContact resistance: ≤50mΩFor tide insulation resistance: ≥10MΩTemperature response rate: ≤1.0 ℃ / minMinimum Current: 200mAPrinciple of performance:When the object to be controlled temperature changes, so that the working fluid thermostat temperature to produce the corresponding portion of the thermal expansion and contraction, physical phenomena (working fluid volume change), temperature sensing bellows portion communicating together produce expansion or contraction. Through leverage, driven by the switch-off operation, to achieve the purpose of constant temperature.Suitable for:Mainly used in household appliances (shower, drum-type washing machines, heaters),Electric equipment (stainless steel automatic water boilers, electric frying pans, food machinery, medical equipment),The refrigeration industry (kitchen freezer, fresh cabinet, refrigerator,Ice machine, fish pond, cold drink machine, heating machine) with temperature control.Package Content:2 x Electric Oven Thermostat
