PID Temperature Controller with 4-20mA Analog Output - Dual Digital Display °C/°F for Kiln, Oven, HVAC & Industrial Process Control - Precise Valve, Actuator & Motor Regulation

FEATURES & SPECIFICATIONS:● Detective Temperature Range: 200 to 1800 °C (depends on input type)● Input Thermocouple: (K,E,J,T) ● RTD: (Cu50, PT100) ● Analog output: 4-20 mA● Control action: Heating , Cooling● Response time: Less than 0.5S (configurable) ACCURACY: ● 0.2%FS+- 0.1C (Cu50 cooper resistor compensation or ice point compensation)● 0.2%FS+0.2C (TC input and internal compensation) ● Temperature drift: Less than 0.01%FS 0C (Typical value is 50ppm/0C) ● Resolution: 10C or 0.10C(automatically change to 10C when the temperature is higher than 999) ● Display: Dual line - four digit - LED display Fahrenheit/Celsius● Decimal points: Configurable for all inputsCONTROL METHOD: ● ON/OFF● AI MPT with auto tuning, adopting fuzzy logic PID algorithm● Auto/Manual Control● Auto/manual bump less transfer from front panel● Auto-tuning & manual tuning availableALARM MODE: ● Absolute value high limit, Absolute value low limit, Deviation high limit alarm, Deviation low limit alarm. ● Alarm stand by In some occasions, for example, in the heating process, when the alarm is set to as low deviation alarm, right after the power is turned on, the alarm will be triggered but there is no problem in the system, the alarm block function can solve this problem. ● Soft start function: In some particular application, 100% output ratio is not allowed when the power just turned on; soft start function is a great feature to solve this problem. ● POWER SUPPLY: 90~260VAC● Dimension (DIN 1/16): 48mm*48mm*90mm● Mounting: Panel Mount

UNIVERSAL INPUT TEMPERATURE RANGE 200 to 1800 °C (depends on input type). This controller is easy to program and comes with a user friendly manual.

BOTH DISPLAY TYPES Display in either Fahrenheit or Celsius temperature unit and decimal points configurable for all inputs, control method on/off AI MPT with auto tuning, adopting fuzzy logic PID algorithm, alarm mode absolute value high limit, absolute value low limit, deviation high limit alarm, deviation low limit alarm.

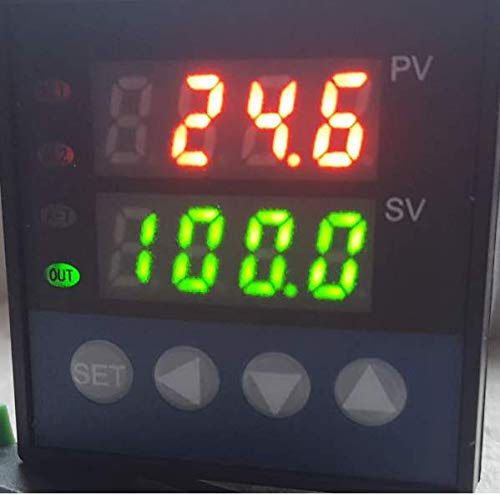

WIDE APPLICATIONS Use this PID Temperature Controller when you wish to precisely control the temperature of a kiln/heater/cooler for analog output . Dual display window, be able to display measured temperature and set temperature at the same time.

HIGH ACCURACY Simplify operational processes by our dual display temperature controller and you don't need to operate more steps if you want to set the definite value. High accuracy of displaying and controlling. Both Manual and Auto turning are available. Alarm ModeAbsolute value high limit, Absolute value low limit, Deviation high limit alarm, Deviation low limit alarm

Analog output 4-20mA is predominantly used to control actuators, valves, and motors in industrial environments. If you need 0-10V output simply add suitable resistor. Shipping to USA is 2-5 business days. For more information please go to our website Thermomart
