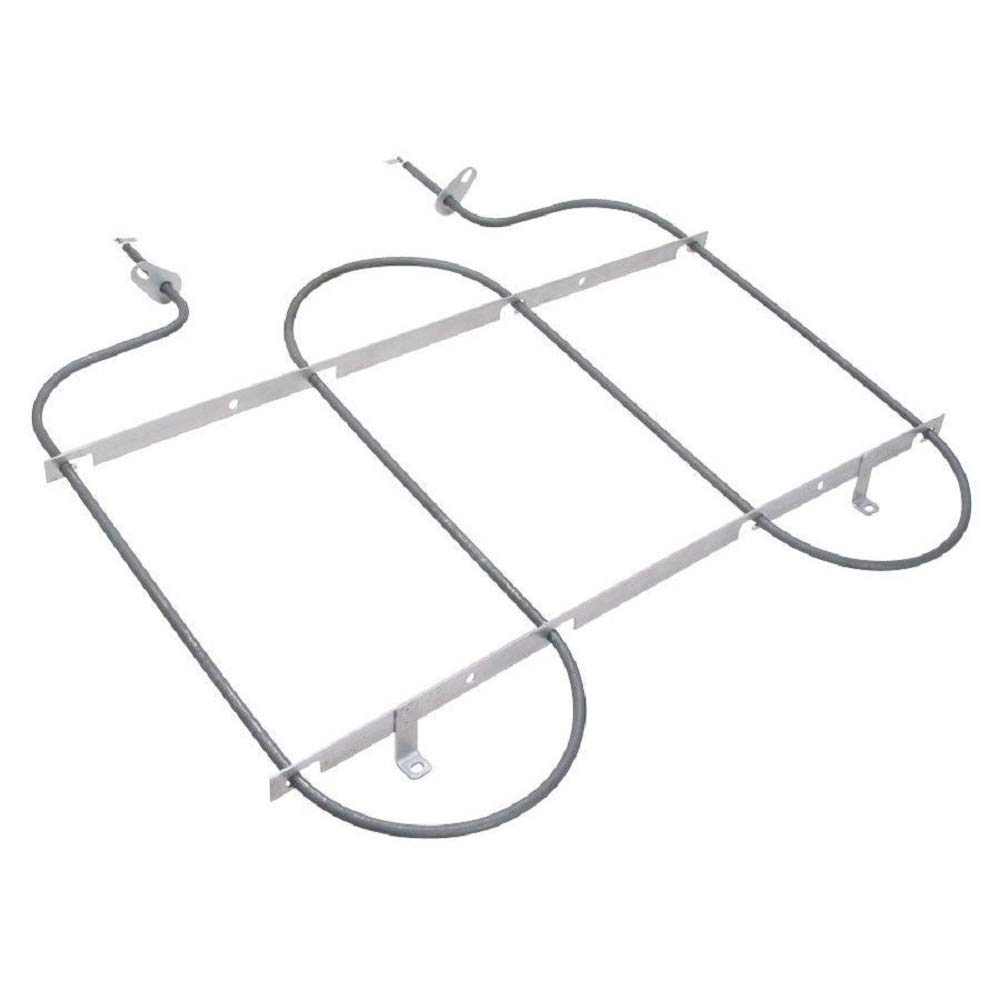

W10308476 Range Oven Broil Unit Heating Element Replacement for Whirlpool Kenmore - Perfect for DIY Kitchen Appliance Repair & Baking Needs

W10308476 Range Oven Broil Unit Heating Element for Whirlpool Kenmore W10856603 Replacement Oven Broil Element part number CH7340. It is designed to fit Whirlpool Ranges, and is a replacement for numbers 3195063, 8053712, 814431, 9757340, W10308476, W10856603, AP5999255, AP4700184, PS3418338, PS11731333. 17" from the front to the mounting bracket 19" Wide 2 5/8" from the mounting bracket to the end of terminal, rod is bent slightly down Mounting holes on bracket across element measure 13-3/4" apart, center to center Mounting Holes near terminals measure 9-5/8 center to center and bracket is angled outward Terminals measure 8-1/2" apart, center to center and are angled at 90 degrees Rated 3400 Watts at 240 Volts. Designed to fit specific Whirlpool models.

Replacement Oven Broil Element part number CH7340. It is designed to fit Whirlpool Ranges, and is a replacement for numbers 3195063, 8053712, 814431, 9757340, W10308476, W10856603, AP5999255, AP4700184, PS3418338, PS11731333.

17" from the front to the mounting bracket 19" Wide 2 5/8" from the mounting bracket to the end of terminal, rod is bent slightly down

Mounting holes on bracket across element measure 13-3/4" apart, center to center

Mounting Holes near terminals measure 9-5/8 center to center and bracket is angled outward Terminals measure 8-1/2" apart, center to center and are angled at 90 degrees

Rated 3400 Watts at 240 Volts.
