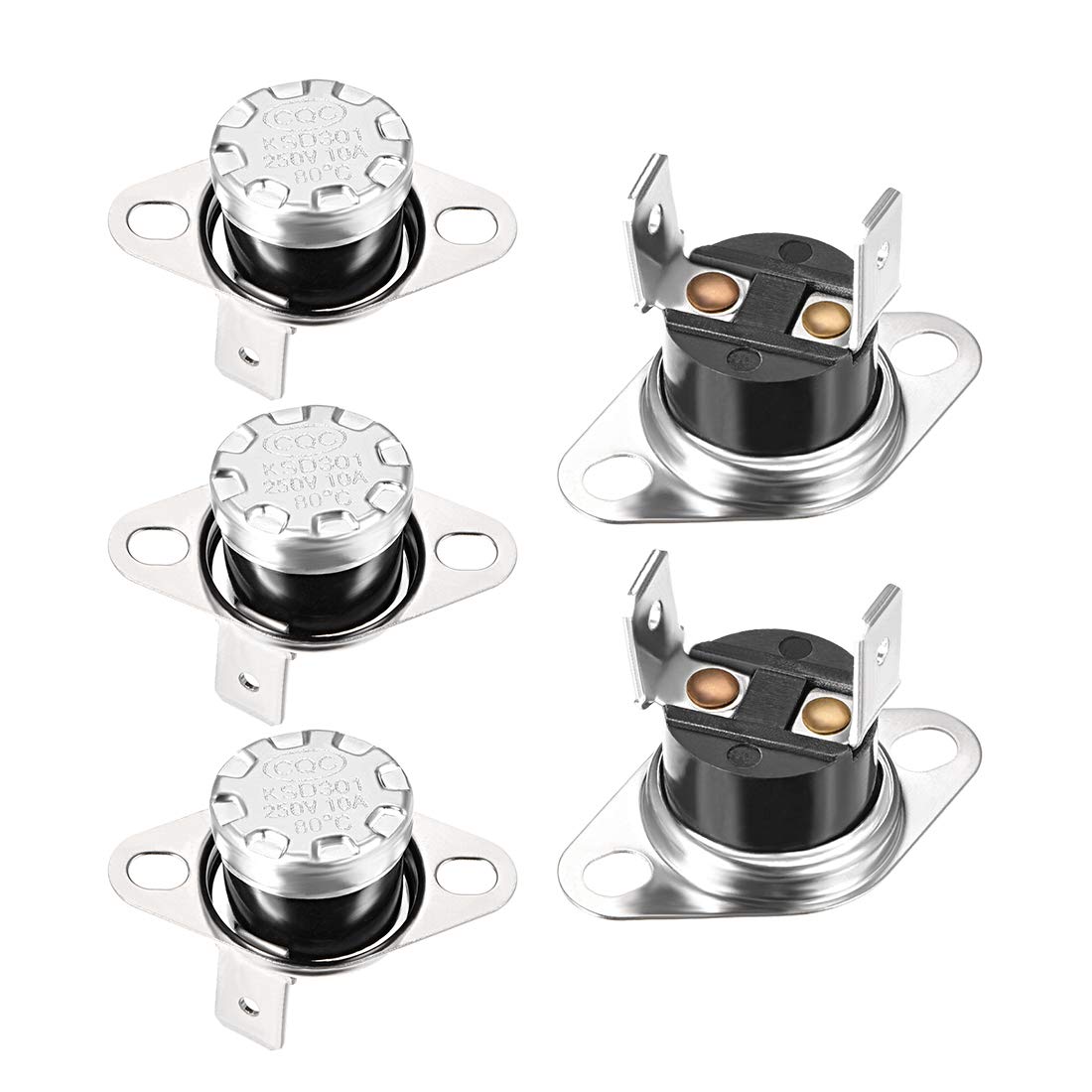

uxcell KSD301 Thermostat 80°C/176°F Normally Open N.O Adjustable Snap Disc Temperature Switch - 5 Pack for Microwave, Oven, Coffee Maker, Water Heater & Home Appliance Safety Control

Working Principle When the electrical appliance works normally, the bimetallic sheet is in the free state and the contact is in the closed / open state. When the temperature reaches the operating temperature, the contact is opened / closed, and the circuit is cut / closed, so as to control the temperature. When the electric appliance cools to the reset temperature, the contact will automatically close / open and return to the normal working state. Advantage Thermal switch has the characteristics of stable performance, high precision, small volume, light weight, high reliability, long service life and small radio interference. Easy to Installation The flange on the switch is float and easy to installation. Please Note 1.Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance. 2.Do not allow liquid to penetrate into the interior of the thermostat or crack the housing. 3.The thermostat should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 ℃, which is ventilated, clean, dry. KSD301 Thermostat N.C/N.O Adjust Snap Disc Limit Control Switch Thermal Switch 2pcs/5pcs Features Action Type: N.C/N.O Rated Voltage/Current : 250V/10A Pin Width : 6.3mm/0.25inch Contact Life: More than 50,000 times (action times) Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon 40-100°C(104-212℉) N.O 40-100°C(104-212℉) N.C 40-135°C(104-275℉) N.C 90-150°C(194-302℉) N.O 90-180°C(194-356℉) N.O 90-180°C(194-356℉) N.C Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 26 3.9 out of 5 stars 16 4.6 out of 5 stars 31 4.9 out of 5 stars 15 2.8 out of 5 stars 3 4.7 out of 5 stars 12 Price $12.59$12.59 $12.29$12.29 $13.09$13.09 $13.79$13.79 $16.49$16.49 $16.99$16.99 KSD301 Thermostat N.C&N.O Kit

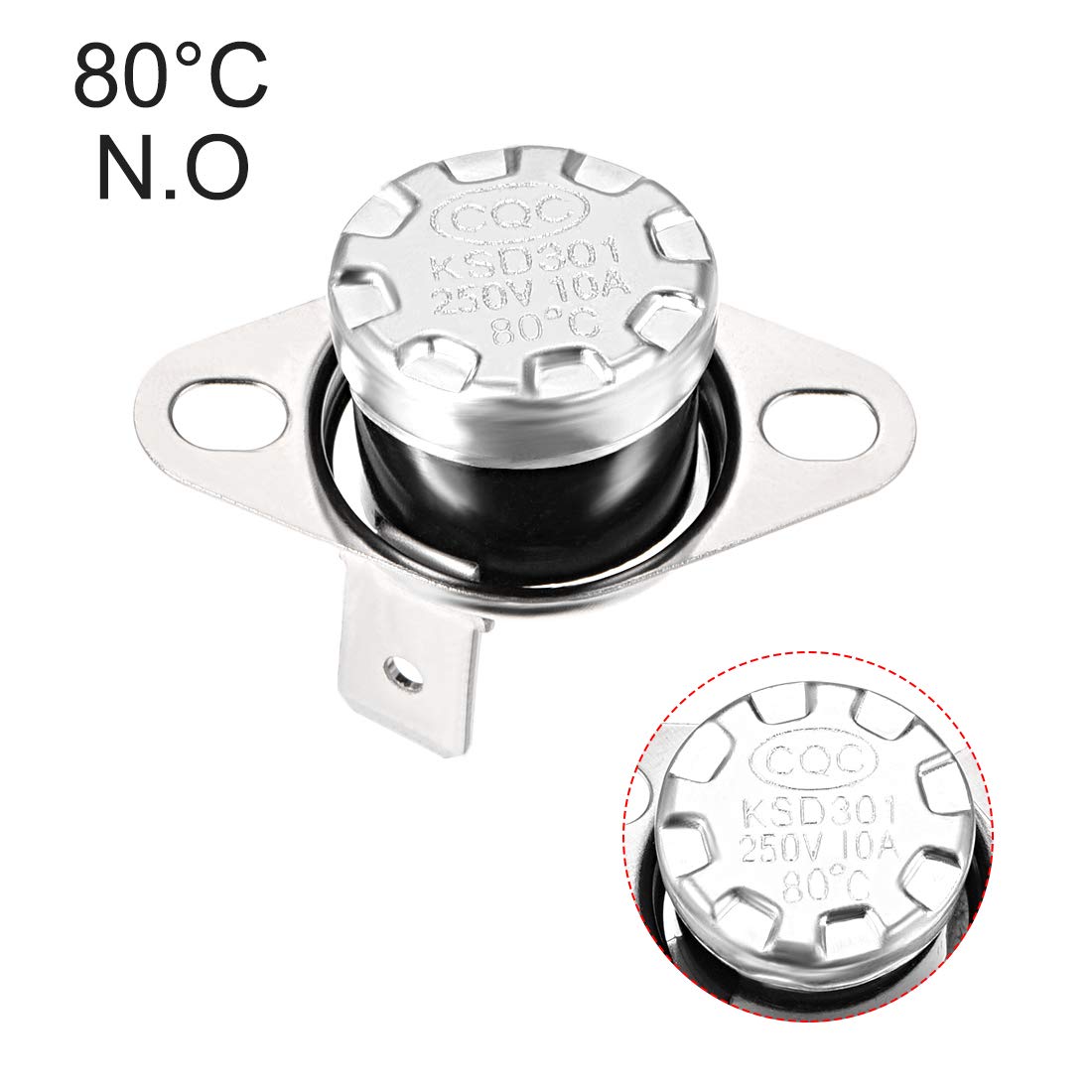

Type KSD301 80 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NO (Normal Open)

Normally Open The original state of temperature control switch contact is open, and closed when the temperature sensing exceeds the rated temperature 80 Celsius degree

Advantage Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.

Easy to installation The flange on the switch is float and easy to installation.The pin width is 6.3mm

Application Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
