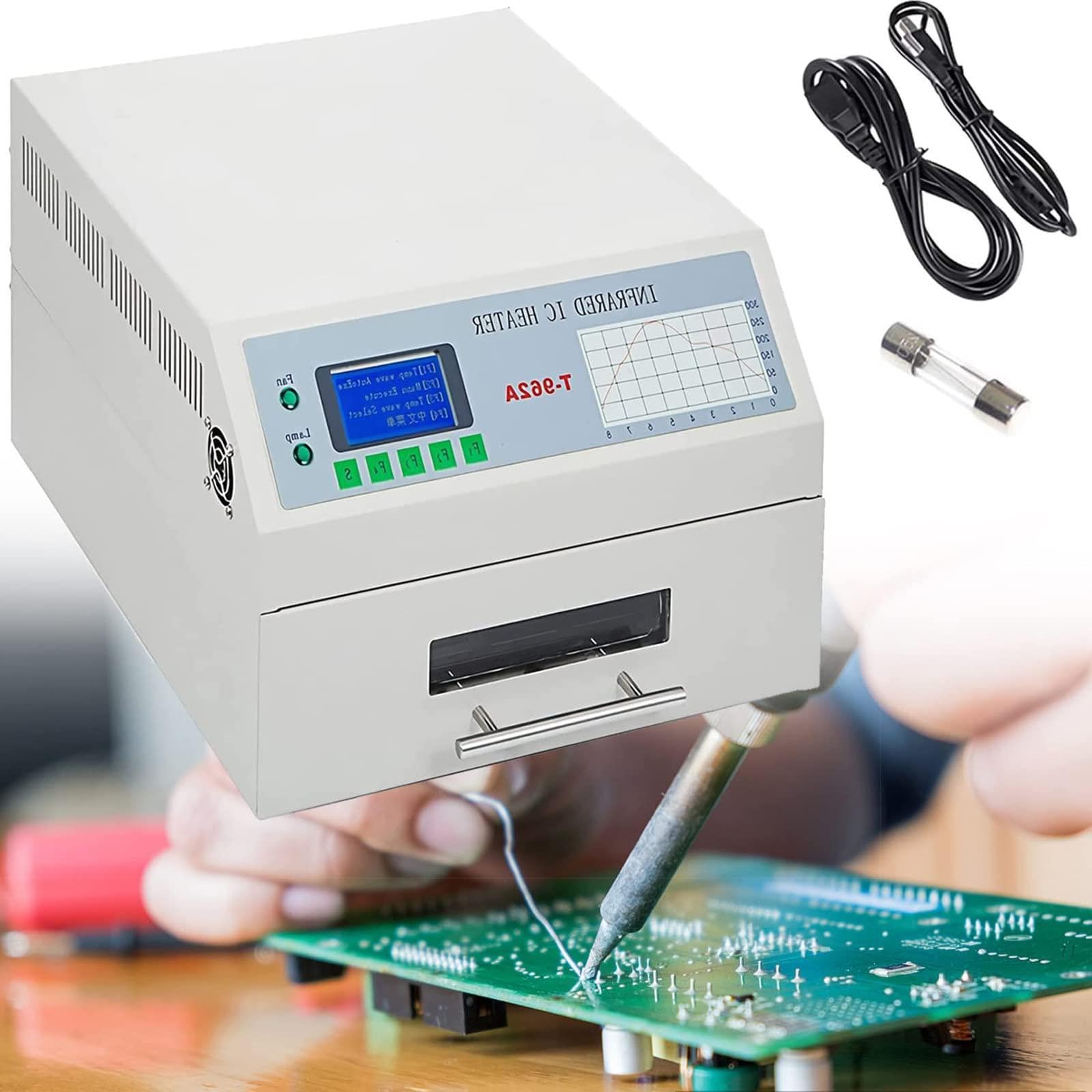

T-962A 1500W Large Body Intelligent Reflow Oven with Hot Air Circulation - Professional SMT Soldering Machine for PCB Assembly, Prototyping & Production Line | Perfect for Electronics Manufacturing, DIY Projects & Repair Workshops

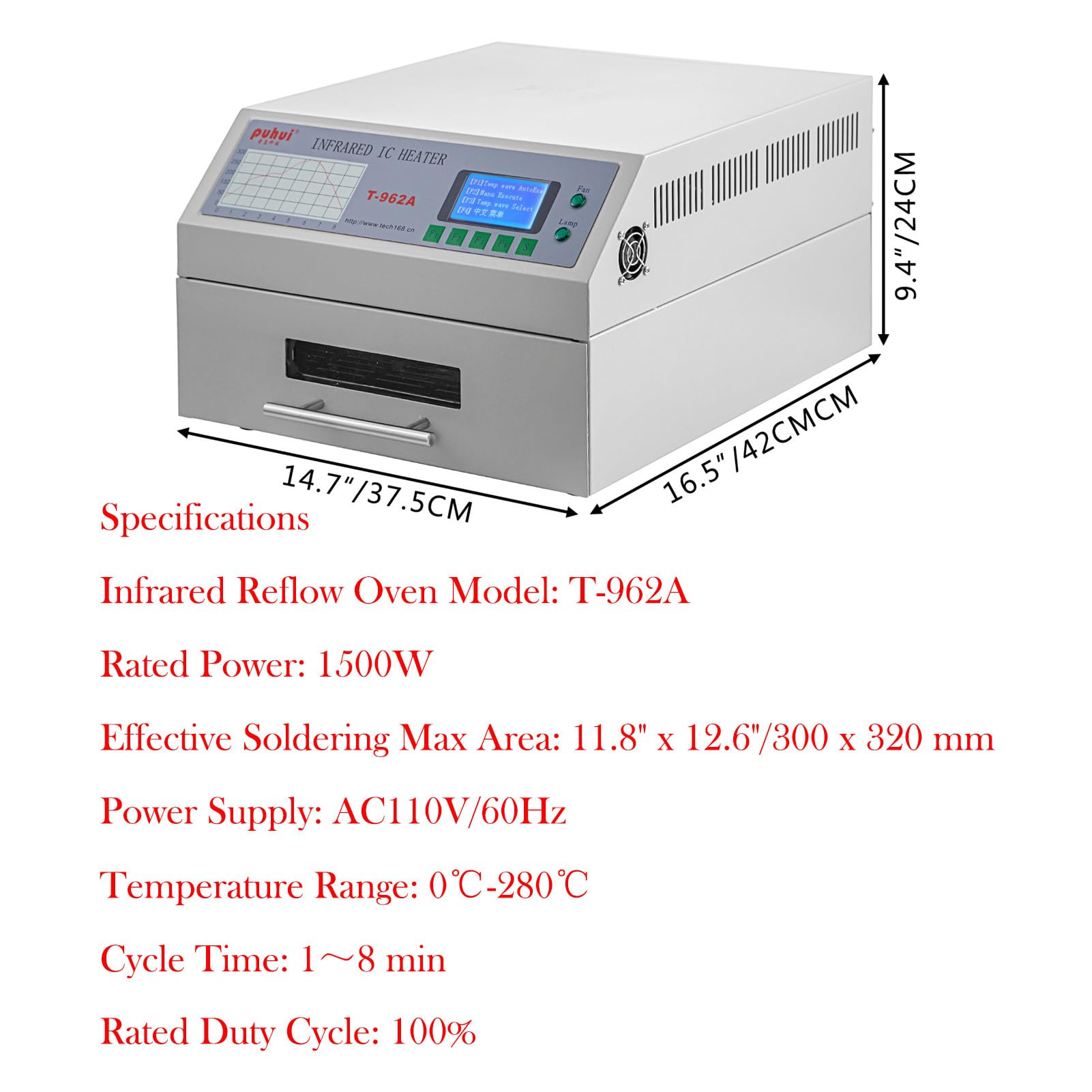

--This is a reflow oven that works automatically under the control of a microcomputer.User Interface Use the T962A input buttons and LCD display to monitor the progress of the heating cycle on the LCD display by selecting a preset heating mode.--8 temperature curves optionalCurve 1, suitable for: 85Sn/15Pb；70Sn/30PbCurve 2, suitable for: 63Sn/37Pb；60Sn/40PbCurve 3 applicable to: Sn/Ag3.5；Sn/Cu.75；Sn/Ag4.0/Cu.5Curve 4, suitable for: Sn/Ag2.5/Cu.8/Sb.5；Sn/Bi3.0/Ag3.0Curve 5 suitable for: Standard curing temperature curve for red glue, Heraeus PD955MCurve 6, applicable to: rework of printed circuit boards, etcCurve 7/8, suitable for: custom curve--Specifications:Infrared Reflow Oven, Model: T962ARated Power: 1500WMaximum effective welding area: 300 x 320 mm (11.8 x 12.6 inch)Power supply: AC110V/220V 50Hz/60HzTemperature range: 0°C - 280°CCycle Time: 1~8min--Package content1* Reflow Oven1 * Instruction Manual

♝【 Reflow Solder Oven】The soldering range of this full automatic heating soldering machine is 300 x 320mm/11.8 x 12.2cm. The temperature range is between 100°C and 280°C; The cycle time is 1-8 minutes. Large area welding can achieve high efficiency.

♝【8 Temperature-parameter Waves】 Eight predefined parameters of soldering cycles can automatically complete the entire soldering process from preheat, soak and reflow to cool down. Also you can select precise temperature parameter waves for different materials.

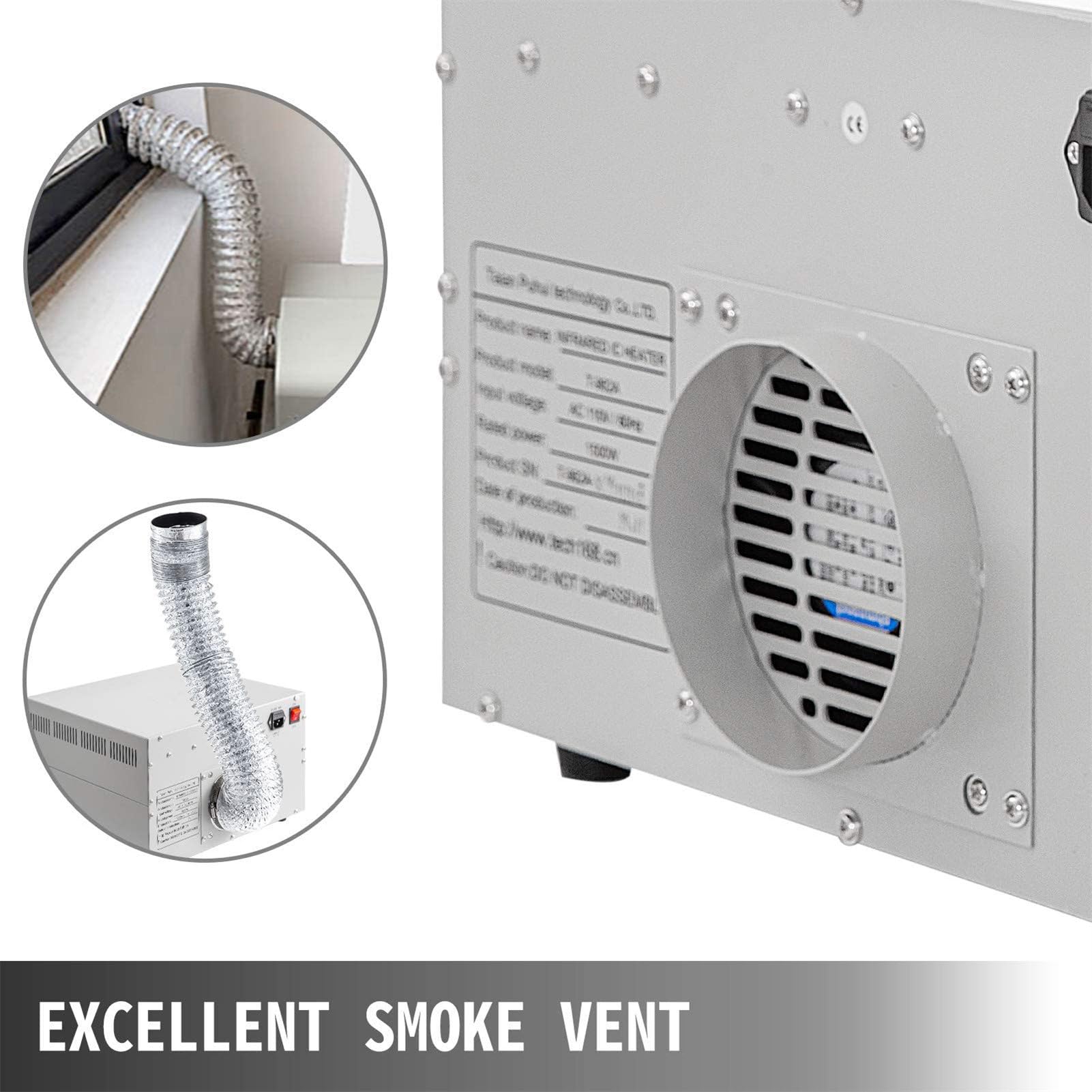

♝【Fast & Reliable Heat Dissipation System】 The unique air vents are designed to achieve accurate and even temperatures. Also, our reflow soldering machine has a smoke outlet that can connect to your exhaust pipe to discharge harmful smoke.

♝【Premium Stainless-steel Handle】The transparent window makes it convenient and safe to observe every stage of the process. The handle also allows effortless transportation to any location. Take your work anywhere.

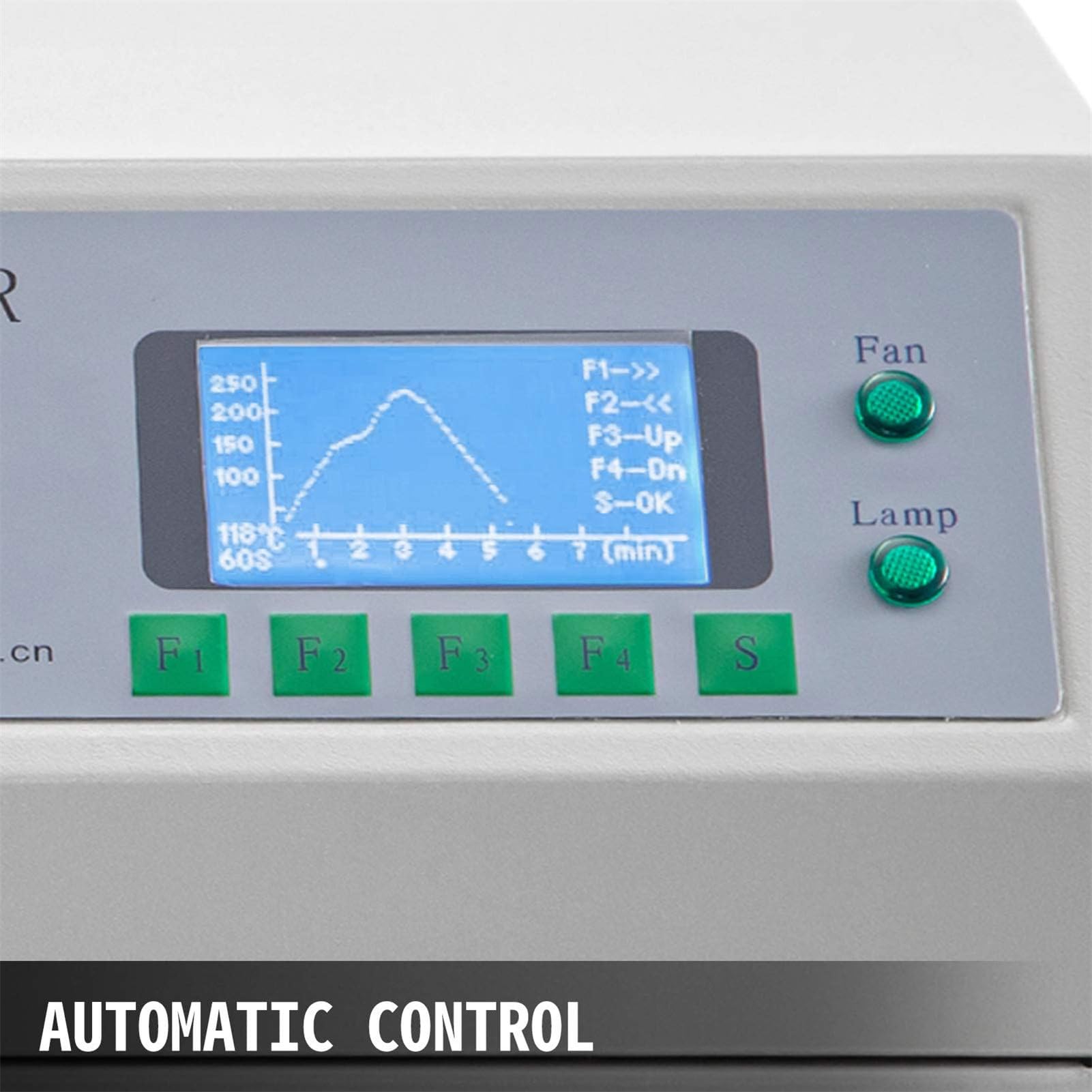

♝【Easy-to-operate LCD Screen】The LCD digital display is clear and easy to read. A full-digital control system can realize precise control and real time temperature's observation during soldering.
