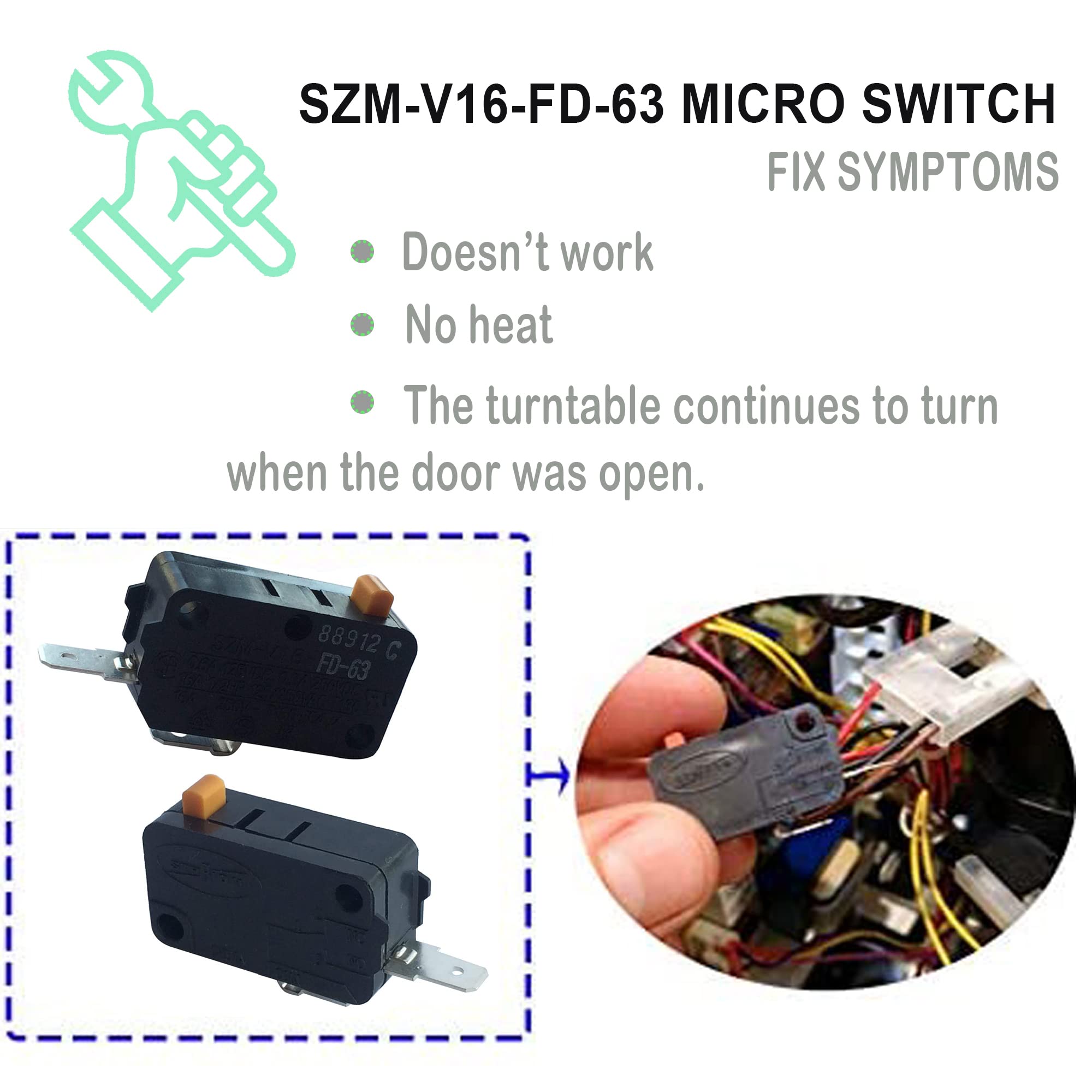

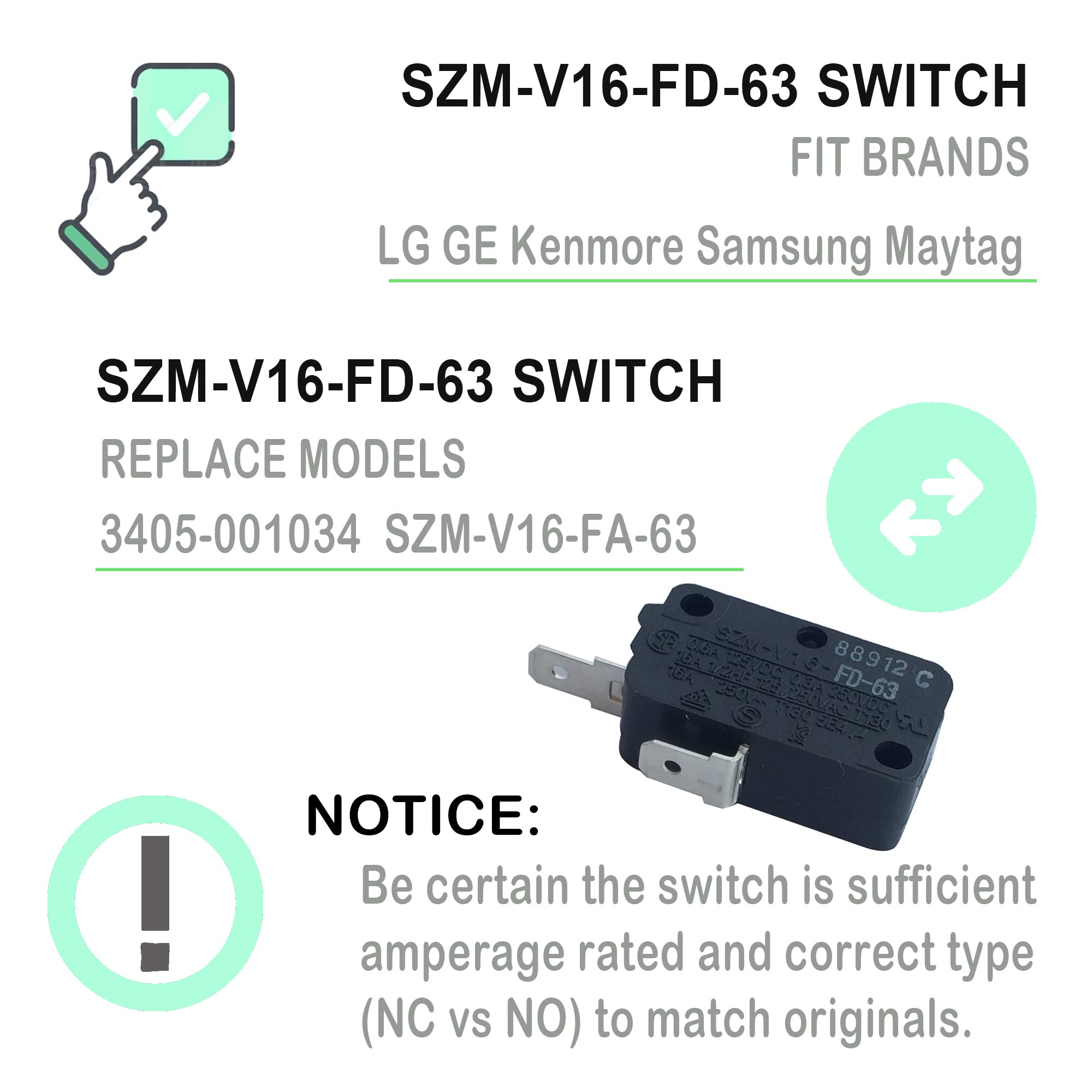

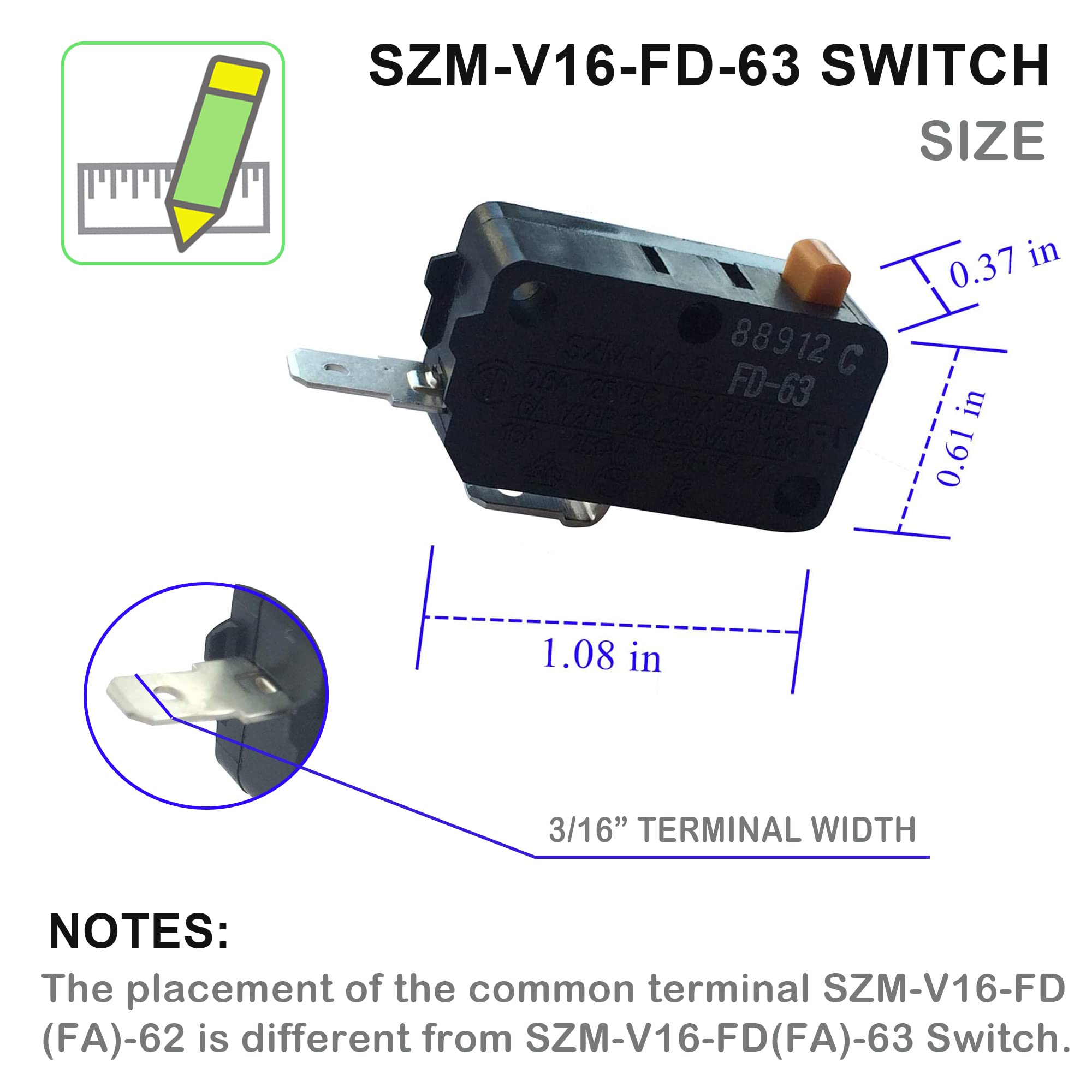

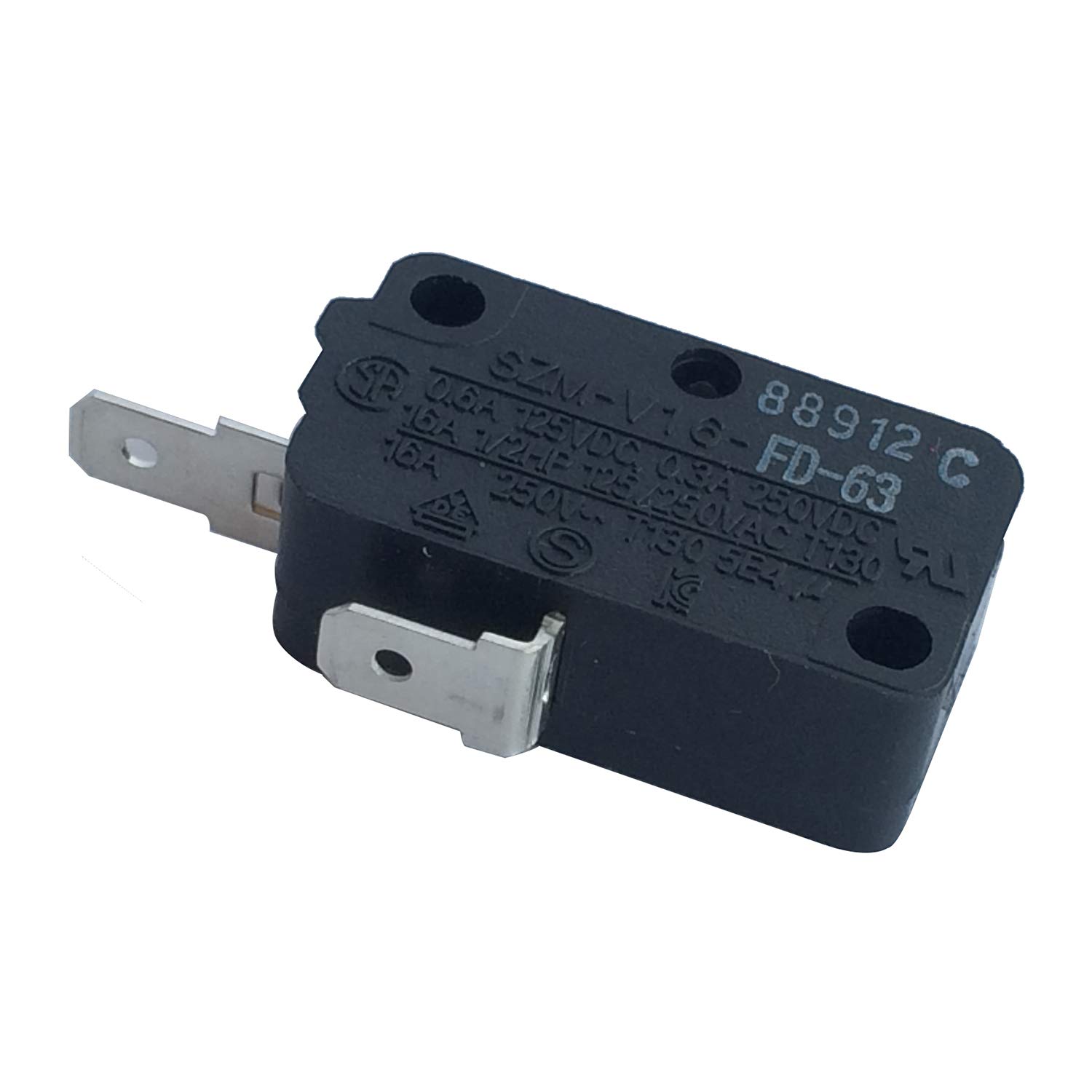

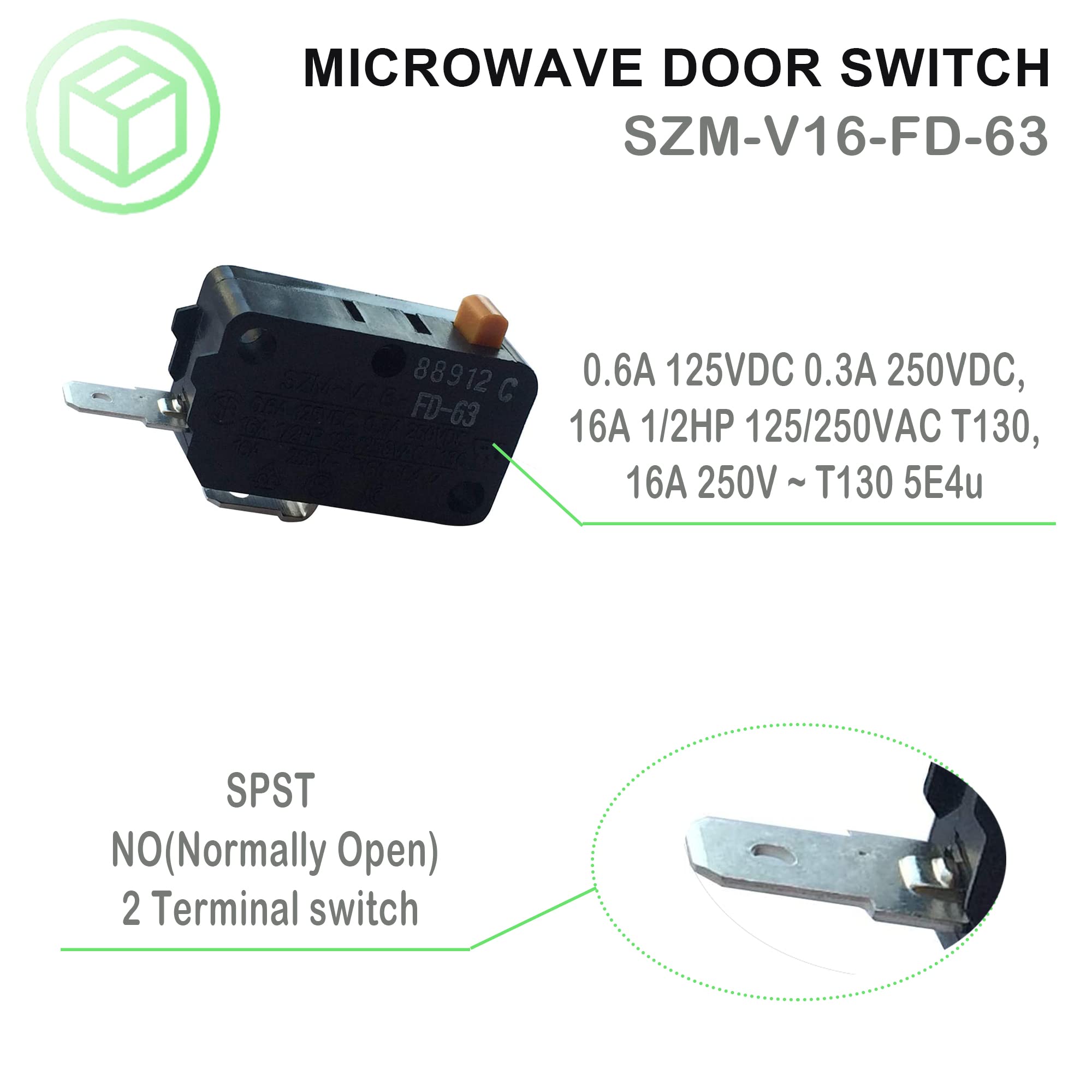

Microwave Switch LONYE specializes in providing various super microwave switches for customers. SZM-V16-FD-63 Door Switch Commonly found in microwave ovens, this switch will close the circuit once the button is depressed. Typicaly if the light & turntable works or the fan & display (countdown) works, but the oven doesn't heat, it is most likely that because a door switch has gone bad.Please make sure the replacement microswitch has been certified safe to use in household appliances, otherwise the switch can be a liability. 0.6A 125VDC 0.3A 250VDC 16A 1/2HP 125/250VAC T130 16A 250V ~ T130 5E4u SZM-V16-FD-63 Switch Character: Contact Arrangement: SPST(Normally Open)Insulation resistance: 100MΩMinContact resistance: 15mΩMaxUse temperature: -25℃ ～ +130℃Operating Force: 200 gf MaxRelease Force: 50 gf MinMovement Differential: 0.4mm MaxOperation Position: 14.7±0.4mm Notice: Please make sure the replacement microswitch has been certified safe to use in household appliances, otherwise the switch can be a liability. Certificate: UL certified (US) CSA certified (Canada) VDE certified (Europe) SZM-V16-FD-63 switch fixes the following symptoms: The microwave does not work to heat.The turntable continues to turn when the door was open. Note: Long needle nose pliers and a long regular screwdriver come in handy for unplugging the harness and freeing the old micro switch. 3405-001034 Microwave Door Switch 5304509459&5304509460 Microwave Door Switch W10727360 & W10269458 & W10269460 Microwave Door Switch 00617228 & 00617229 Microwave Door Interlock Switch WB24X10204 & WB24X10205 Microwave Door Switch Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 1,799 3.9 out of 5 stars 26 4.5 out of 5 stars 1,099 3.4 out of 5 stars 2 4.4 out of 5 stars 33 Price $8.99$8.99 $15.69$15.69 $9.57$9.57 $11.88$11.88 $19.99$19.99 Rated Current/ Voltage 16A 125, 250VAC 0.6A 125VDC, 0.3A 250VDC 1/2HP 125,250VAC 16A 125/250VAC 1/3HP 125VAC 10A 30VDC 16(4)A 16A 125, 250VAC 0.6A 125VDC, 0.3A 250VDC 1/2HP 125,250VAC 16A 125/250VAC 1/3HP 125VAC 10A 30VDC 16(4)A 16A 125/250VAC 1/3HP 125VAC 10A 30VDC Contact Arrangement SPST-NO SPST-NO/NC SPDT SPST-NO/NC SPST-NO/NC Fit Brands Samsung LG GE Kenmore Frigidaire, Kenmore, Electrolux Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Estate Bosch GE Hotpoint Replace Models 3405-001034 switch replaces28QBP0497, D3V-16G-3C25, SZM-V16-FA-63, WB24x829, WB24X10076, WB24X10038, WB24X801,WB24X796, WB24X5228, 5304509459 switch replaces for 5304464098, 4583655, AP6230614, PS12071302 Door Switch 5304509460 replaces for 4583656, AP6230615, PS12071303, EAP12071303. W10727360 replaces W10269457, W10727360VP, AP5950105, PS10057151 W10269458 replaces AP4429884, 1550016, AH2361111, EA2361111, PS2361111 W10269460 replaces AP4429920, 1550018, AH2361113, EA2361113, PS2361113 00617228 replaces 1998851, 617228, AP4512903, AH3478389, EA3478389, PS3478389, PS8728111 00617229 replaces 1998852, 617229, AP4512904, AH3478390, EA3478390, PS3478390, PS8728112. WB24X10204 switch replaces for 251201600929, 3025958, AP5790848，PS8754454, WB24X10148, WB24X28940. WB24X10205 switch replaces for WB24X10147, 251201600930, 3025959, AP5790849，PS8754455. Max Temperature T130 T125 T130 T125 T125 Terminal Number 2 2 2&3 2 2
