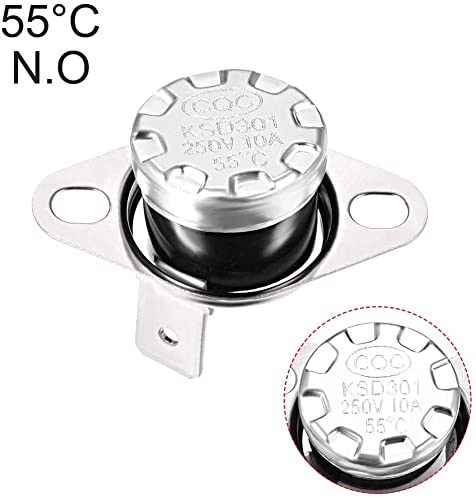

KSD301 Thermostat N.C/N.O Adjust Snap Disc Temperature Switch Faetures 1. Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon. 2. General purpose, automatic reset, low cost, large capacity, minute current thermostats. Note 1. No fluid is allowed to submerge inside the thermal control switch. 2. Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance. 3. The thermostat should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 ℃, which is ventilated, clean, dry. Main information Model: KSD301 Body Material:Ceramics/Bakelite Rated Voltage: 250 Volt Rated Current: 10 Amp Action Type: NC/NO Contact Life: More than 50,000 times Normally Closed The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature Celsius degree. Normally open Normally open thermal switch means that the contacts of thermal switch normally remain open; When temperature increases to the set value, the contacts would close and connect the circuit ON. Advantage KSD301 Thermostat has double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, general purpose, automatic reset, low cost, large capacity, long service life, no arc phenomenon. Wide Application Mainly used for motor electric heating water dispenser, water bottles, disinfection cupboard, disinfection cabinet, coffee shell, air conditioning, water heater, electronic cooker, electric iron, dryer, heater and motor cleaner and so on. 5Pcs KSD301 Thermostat 65°C/149°F 2Pcs KSD301 Thermostat 125°C/257°F 5Pcs KSD301 Thermostat 80°C/176°F 2Pcs KSD301 Thermostat 45°C/113°F 5Pcs KSD301 Thermostat 75°C/167°F 2Pcs KSD301 Thermostat 160°C/320°F Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews — — — 5.0 out of 5 stars 1 — — Price $11.19$11.19 $10.99$10.99 $11.09$11.09 — no data $11.19$11.19 $11.29$11.29 Action Type NC NC NC NO NO NC Temperature 65°C/149°F 125°C/257°F 80°C/176°F 45°C/113°F 75°C/167°F 160°C/320°F 5Pcs KSD301 Thermostat 145°C/293°F 5Pcs KSD301 Thermostat 200°C/392°F 2Pcs KSD301 Thermostat 130°C/266°F 5Pcs KSD301 Thermostat 120°C/248°F 2Pcs KSD301 Thermostat 60°C/140°F 5Pcs KSD301 Thermostat 50°C/122°F Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 4 — — 4.6 out of 5 stars 2 5.0 out of 5 stars 1 — Price $11.69$11.69 $12.79$12.79 — no data $13.29$13.29 $10.99$10.99 $11.09$11.09 Action Type NC NC NC NC NO NO Temperature 145°C/293°F 200°C/392°F 130°C/266°F 120°C/248°F 60°C/140°F 50°C/122°F
